Perch and MBARI Clips: Beyond the Easy Cases

Continuing on from the last post about Perch 2.0 embeddings from MBARI raw hydrophone data, it seems important to note that the PCA plot in that last only looked at the extremes–the clips where the humpback detector model expressed strong positive confidence (>90%) or extreme negative confidence (<5%).

So let’s look at what happens when we take slightly less obvious examples. Let’s compare 70-90% vs 10-30% confidence clips. We’ll use the same day, December 21, 2016, because it has a lot of high-confidence examples.¹

The clips are embedded below.

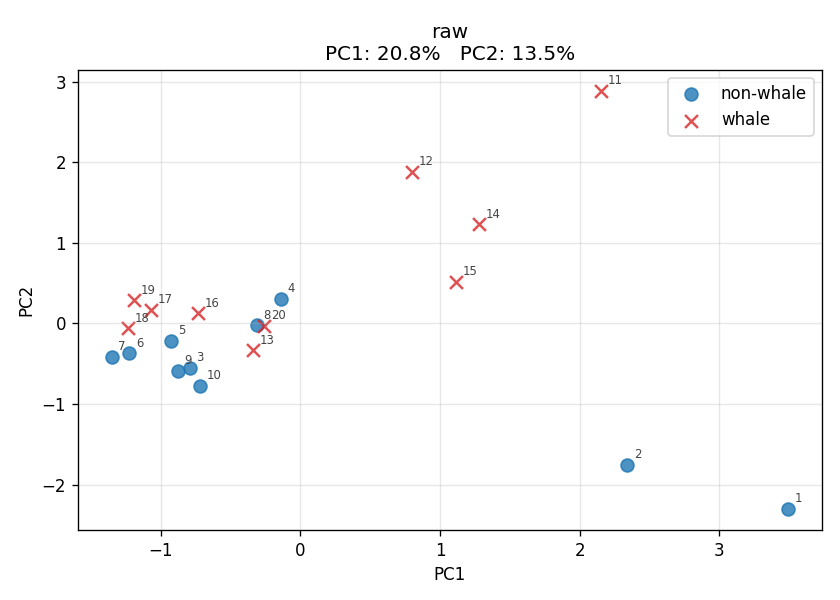

Here’s the PCA plot of 10 detector-tagged likely whale and 10 likely not-whale:

This is a bit more interesting. Either a) the humpback detector is getting some classifications wrong, b) Perch embeddings can’t easily distinguish these less obvious clips, or the c) the PCA axes of variance-maximization don’t correspond well to what we’re looking for here.

Let’s start with the first, and manually verify the humpback detector’s classification:

10-30% likely humpback (“correct” here means not-humpback):

1. correct. Clearly dolphin.
2. correct. More dolphin.
3. correct. Background noise
4. incorrect. Sounds like a humpback at 0:02
5. correct. Indistinguishable noise
6. correct. Again, indistinguishable, although I think I might hear a humpback off in the distance
7. tossup. The last second of this clip sounds humpback-like.
8. incorrect. There are a couple faint humpback bloops there
9. correct. Noise
10. correct. There’s a tone, but it doesn’t sound whale-like

70-90% likely humpback (“correct” here means humpback):

11. correct. That’s a whale or two
12. correct. Humpback
13. correct. This is a close one, but the last second qualifies it
14. correct. Humpback
15. correct. Humpback
16. correct. Humpback roar
17. correct. Faint, but there
18. correct. Fainter, but there
19. correct. Humpback
20. correct. Humpback call in the first half-second

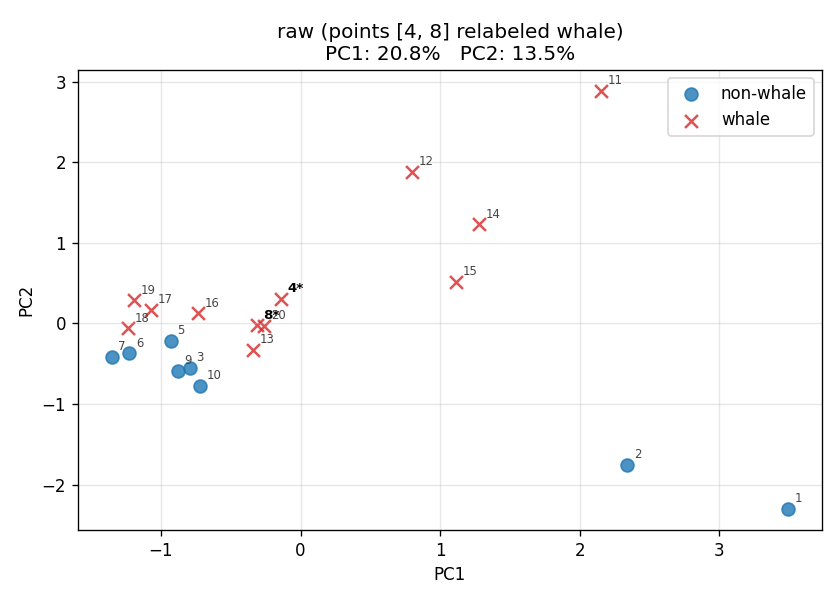

Let’s call it 17.5/20. Not as perfect results as with the 10/90 clips in the last post. But if we correct the plot with the manual label corrections:

Based on this new plot, and with knowledge of the ground truth as determined by my listening², we can see a few different groups:

1. The dolphins (1,2)
2. The definitive whale clips (11,12,14,15,16,19)
3. The less-obvious whale clips (4,8,13,17,18,20)³
4. The not-whale clips (3,5,6,7,9,10)

But (3) and (4) really aren’t easily distinguishable in this representation of the Perch embeddings without ground-truth knowledge.

It seems that once we correct for the humpback detector model’s incorrect classification, for less-obvious positive and negative examples the clusters don’t separate in the embedding space in a clearly obvious way, but they certainly show tendencies.

At this point, I can either try a larger dataset and see if clearly-detectable clusters resolve, or a different visualization besides PCA.

If the embedding clusters aren’t apparently separable with any other methods, we might have to consider that the older, more specific humpback-detector model separates the positive and negative classes more cleanly than a simple Perch embedding visualization can.

More attempts to see what Perch is capable of in the next post.
